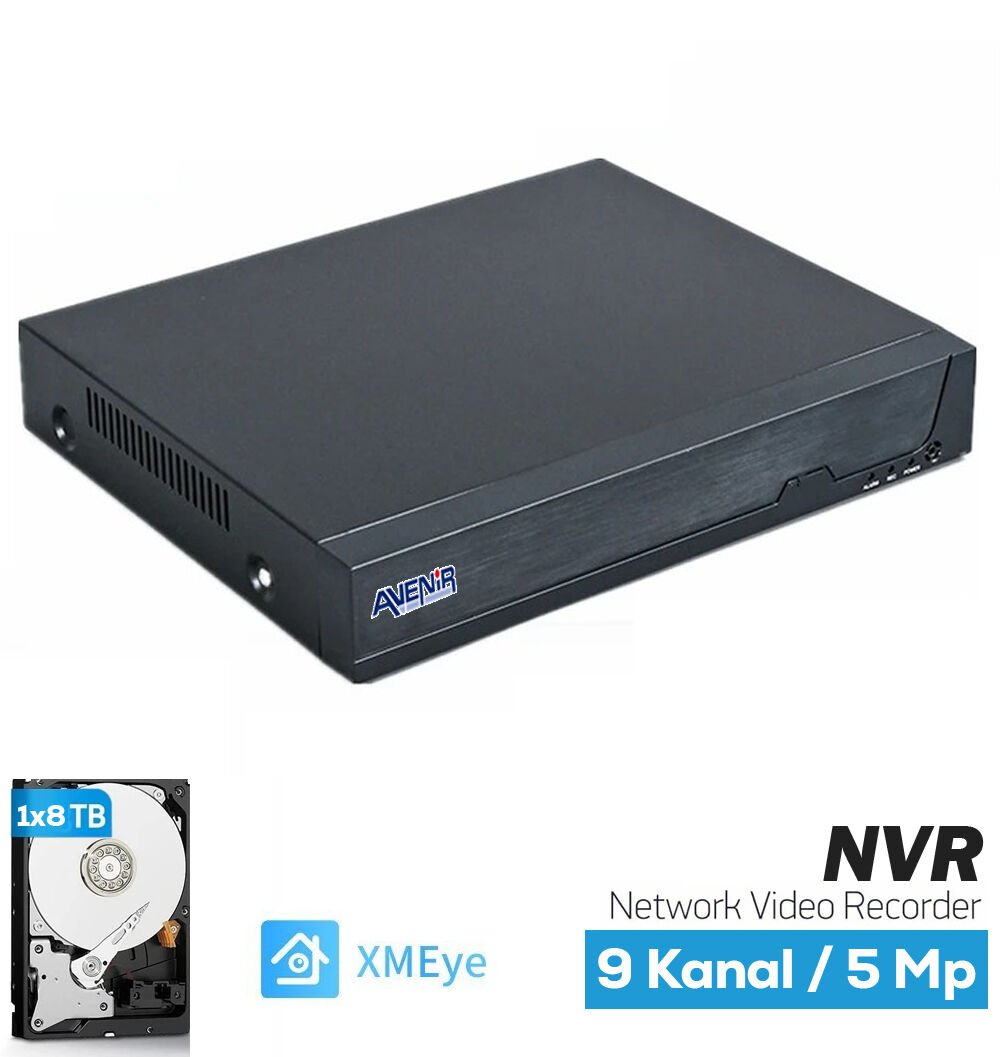

8/9 Kanal 5 MP'e Kadar 1x8 TB HDD NVR Kayıt Cihazı AV-NVR08
0 yorum
3.477,77 TL
2.086,66 TL
%40
| SYSTEM DONANIM GENEL BAKIŞ |
| Operating System : Embedded LINUX |
| VIDEO & AUDIO |
| IP Camera Input : 8 channel |
| Two-way Talk : 1 channel Input, 1 channel Output, BNC, 1 Port SATA |
| DISPLAY |
| Interface : 1 HDMI, 1 VGA, 1 BNC |
| devamı... " data-bs-original-title="Resolution">Resolution : 800*600;1024*768;1280*1024;1440*900;1920*1080 |
| Display Split : 1/4/8 |
| Menü Sistemi " data-bs-original-title="OSD">OSD : Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| RECORDING |
| Compression : H.264（High Profile @ Level4.2）/ MPEG-4 |
| Resolution : 5MP(2560×1920) / 3MP(2048×1536) / 1080P(1920×1080) / 720P(1280×720) / D1 (704×576/704×480) |
| Record Rate : Max 4CH @ 1080P or 8CH @ 720P or 8CH @ D1 |
| Record Mode : Manual, Schedule(Regular(Continuous), MD, Alarm), Stop |
| Record Interval : 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| VIDEO DETECTION & ALARM |
| Trigger Events : Recording，Alarm，Video Push，Email, Buzzer |
| Video Detection : Motion Detection、Video Loss、HDD Loss |
| Alarm Input : 4 channel |
| Relay Output : 1 channel |
| PLAYBACK & BACKUP |
| Sync Playback : 1/4 |
| Search Mode : Time/Date, Alarm, MD & Exact search (accurate to second) |
| Playback Functions : Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
| Backup Mode : USB Device / Network |
| NETWORK |
| Ethemet : RJ-45 port (10/100M) |
| Network Functions : HTTP, IPv4/IPv6, TCP/IP, UPNP, DHCP, DNS, PPPOE, DDNS |
| Max.User Access : 20 users |
| Mobile Phone : IPhone, IPad, Android |
| STORAGE |
| Internal HDD : 2 SATA ports, up to 4TB |
| AUXILIARY INTERFACE |
| USB Interface : 3 ports (1 Rear), USB2.0 |
| RS232 : Yes |
| RS485 : 1 port, For PTZ control |
| GENERAL |
| Power Supply : DC12V/4A |
| Power Consumption : 10W(without HDD) |
| Working Environment : -10 ~+55°C / 10~90%RH / 86~106kpa |
| Dimension(W*D*H) : 1U，315*274*45 (mm) |
| Weight : 1.5-2.0kg(without HDD) |
